JAW PLATES

What are jaw plates?

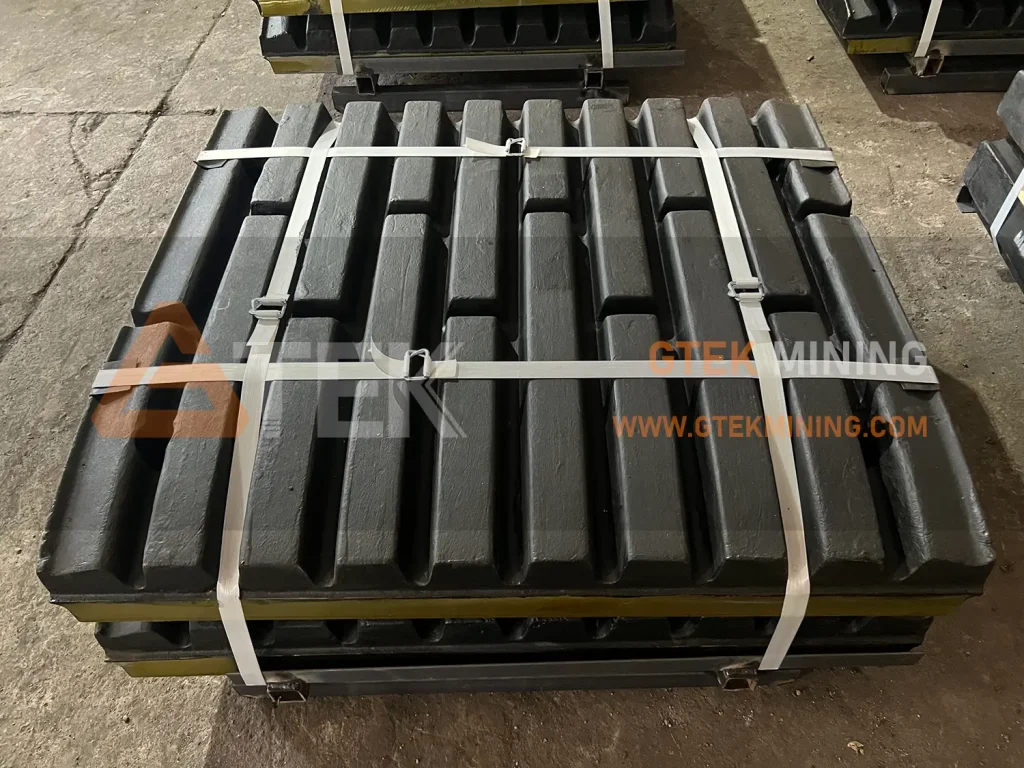

A set of jaw plates is composed of the movable (swing jaw) and fixed (stationary) jaw plates. The crushed material in a jaw crusher is compressed when the movable jaw presses the feed material against the fixed jaw. The rock remains in the crushing chamber until it is small enough to pass through the gap towards the bottom of the jaws.

Jaw plates or jaw dies are the most frequently replaced wear parts of a jaw crusher, so the quality of the jaw plates is one of the most important factors that determines the crushing efficiency and machine operating time.

Why GTEK Jaw Plates?

↑

GTEK has vast database and mold inventory for more than 350 types of jaw plates, which suit a variety of brands and models.

We have the ability to customize your drawing and guarantee a 100% fit on the jaw crusher you are using. Make sure you quote the correct OEM part numbers when requesting a quote.

Days

Our foundry capability and production schedule arrangement make sure your order is trackable in any steps. Deliver the goods within the expected lead time.

We provide several metallurgical options for your jaw plates. Our experts have the knowledge and experience to minimize your cost per ton by selecting the proper material upon application.

Genuine Alternative Wear Parts

Jaw plates made by GTEK

GTEK holds a vast mold inventory of extensive well-known jaw crusher brands, including Mesto, Sandvik, Trio, Terex Cedarapids, Terex Powerscreen, Terex Finlay, Telsmith, H.R. Lippmann, McCloskey, Extec and others.

Our jaw plates are cast and produced in accordance with the OEM standard and preciously machined for mounting. We also guarantee the proper fit of all jaw plates we produce.

Looking for a parts list that we are supplying? CONTACT US or Explore GTEK ONLINE SHOP. Make sure you quote the correct OEM part numbers to speed up the quote.

400.0485-001 Mn13 Fixed Jaw Plate for CJ615

400.2207-002 / 400.1101-002 Mn18 Jaw Plate Set for CJ211

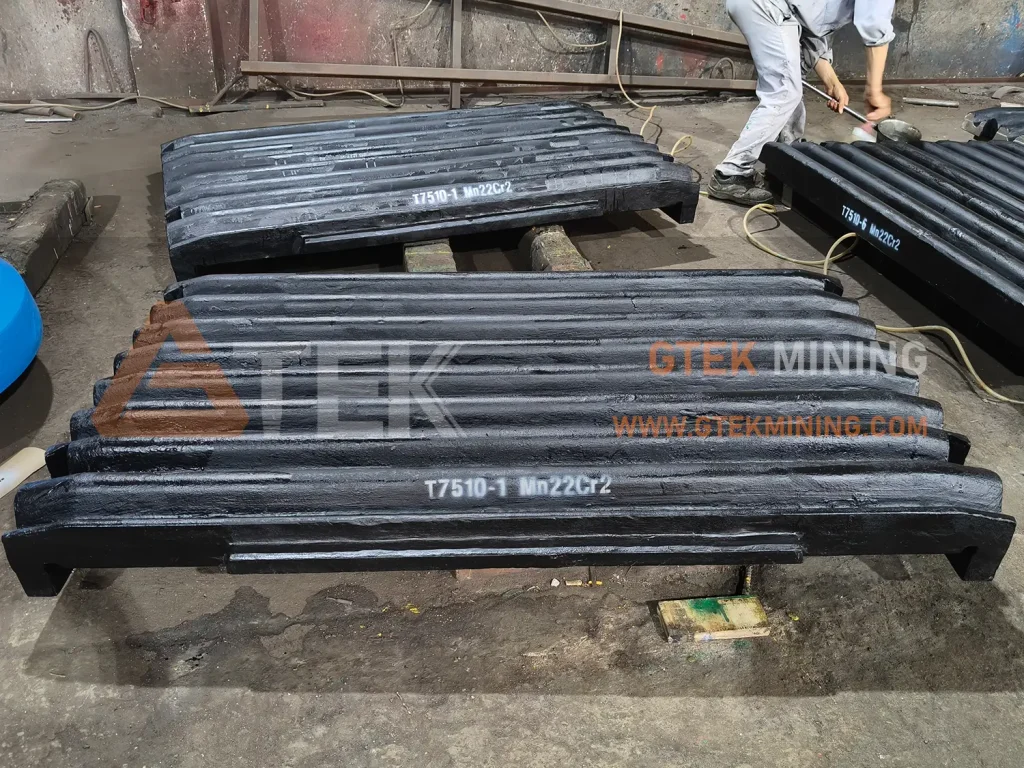

T7510-6 / T7510-1 Mn18 Jaw Plate Set for CT3042

*NOTE: All manufacturer names, part numbers, model numbers, and descriptions are used for reference and identification purposes only, they are owned by the respective machine manufacturer. All parts supplied are manufactured and warranted by GTEK and are not manufactured by or purchased from the Original Equipment Manufacturer. GTEK has no association with the OEM and does not intend to give this impression.

Models

METSO Nordberg C Series	METSO Lokotrack LT Series	SANDVIK CJ Series	SANDVIK CM Series	SANDVIK JM Series	SANDVIK UJ Series	SANDVIK EXTEC & FINTEC
C106 C116 C120 C130 C150 C160 C200	LT96 LT106 LT116 LT120 LT120E LT130E	CJ815 CJ615 CJ613 CJ612 CJ412 CJ411	CM1208F CM1208i CM1211 CM1511	JM1107 JM1108 JM1208 JM1211 JM1312 JM1511 JM1513 JM806 JM907	UJ310 UJ440E UJ440i(CM1208i) UJ540(CM1211) UJ640(CM1511)	C-10 C-10+ C-12 C-12+ QJ240/241 QJ330/331 QJ340/341 QJ341+
KLEEMANN	KOMATSU	TELSMITH	TEREX POWERSCREEN	TEREX FINLAY	TEREX Cedarapids	KEMCO
MC100 R EVO MC110 R EVO MC110 Z EVO MC120 Z PRO MC125 Z MC140 Z MC160 PRR	BR380JG	H2238 H2550 H3244 H3450 3258 Hydraulic 3858 Hydraulic Iron Giant Series 3042/3055/3648	METROTRAK PREMIERTRAK 330 PREMIERTRAK 300 & R300 PREMIERTRAK 400X & R400X PREMIERTRAK 600 & 600E	J-960 J-1160 J-1170AS J-1170 J-1175 J-1280 J-1480	JC2236 JW42 JW55 JC3660 JS3750 JS4552 JC5460 MJ400R MJ42 MJ47 MJ55 CRJ3042 CRJ3255 CRJ3750	F3 F4 F80N STK4 STK5 A6S A7S A9S

Traceable Quality

GTEK maintains full traceability for all castings produced. Each cast comes with below reports, and we keep them for three years for possible quality tracing. These reports are not delivered with castings unless required.

Dimension Inspection Report

Heat Treatment Record and Traceable Foundry Heat Number

Chemical Composition Report

Jaw Profile Optimization

Not satisfied with the service life of your current jaws? Experiencing unwanted blockage of hard rocks? We are able to help you through jaw profile optimization, either by OEM recommended tooth configuration or a customized solution for some old models. Contact our expert and get a tailor-made jaw profile optimization plan.

Metallurgical Options

In general, jaw plates are made of high manganese steel, which is considered the dominant wear material. High manganese steel is also known as Hadfield manganese steel, a steel whose manganese content is very high and which possesses austenitic properties. Such plates are not only extremely tough but are also quite ductile and work-harden with use.

We offer jaw plates in 13%, 18%, and 22% grades of manganese, with chromium ranging from 2% to 3%. Alloying elements can be added upon requirements, such as Mo (molybdenum) or wear-resistant inserts.

We keep a chemistry inspection report for each order, even each jaw plate, for quality tracking purposes.

Material	Chemical Composition (%)				Machanical Property
	Mn	Cr	C	Si	Ak/cm	HB
Mn13Cr2	12-15	1.7-2.2	1.15-1.25	0.3-0.8	＞140	≤220
Mn18Cr2	17-19	1.8-2.2	1.15-1.3	0.3-0.8	＞140	≤230
Mn22Cr2	21-23	1.8-2.2	1.1-1.4	0.3-0.8	＞140	≤240

More than Jaw Plates

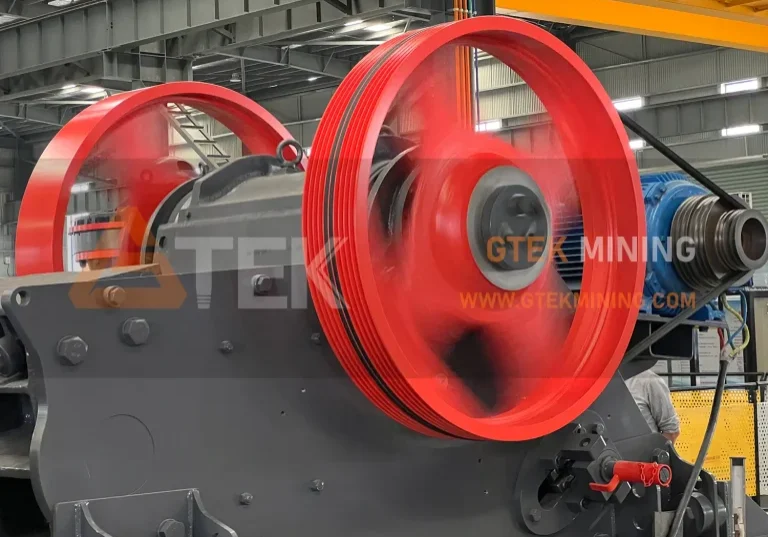

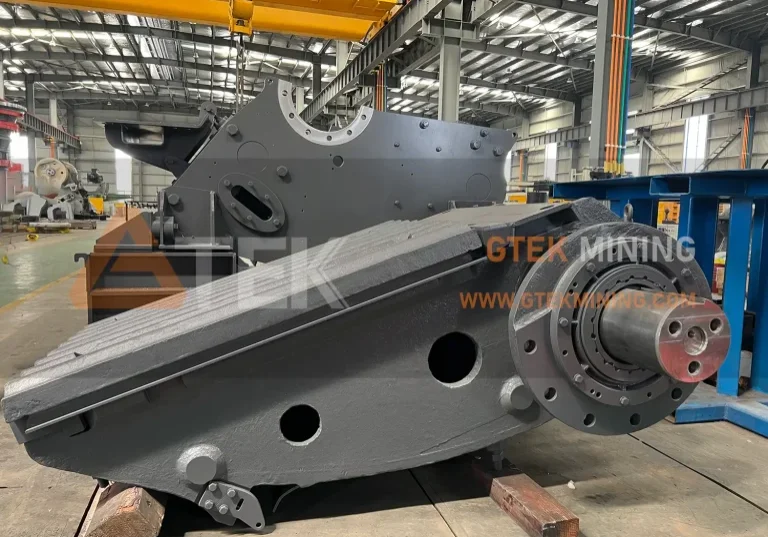

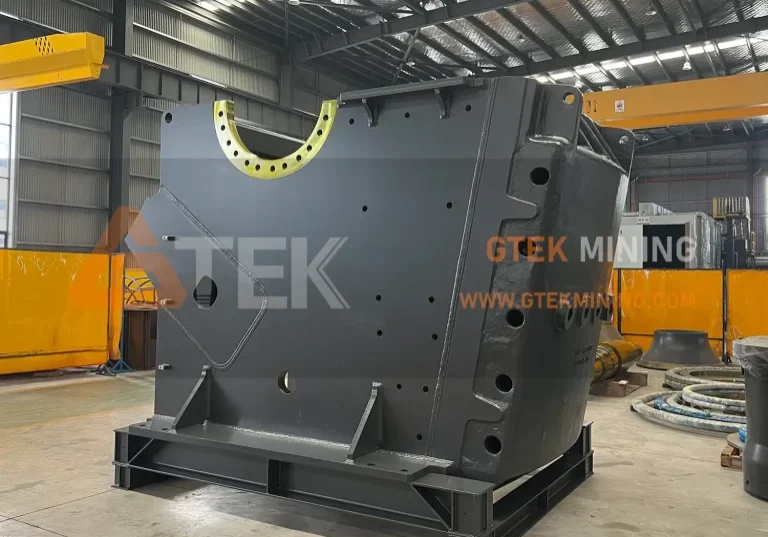

GTEK also supplies other jaw parts, such as toggle assembly, pitman assembly, fasten kits, and frame components. As with the jaw plates, they are all in accordance with the OEM standard, including material and tolerance.

All GTEK compatible crusher parts are manufactured and warranted by GTEK; for the avoidance of doubt, it is not implied that our branded parts originate from the OEM.

Click here to check the other jaw crusher parts we are supplying;
